Product Details

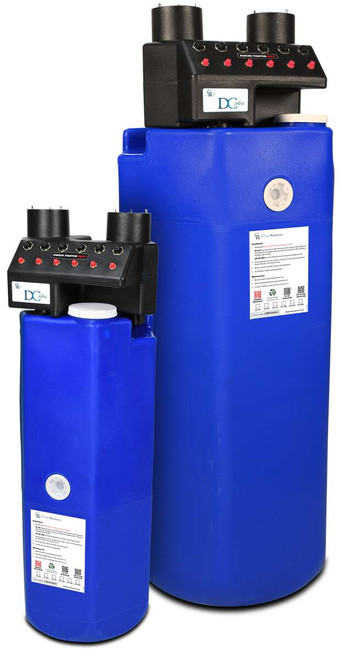

CRP-1500 CFM Oil/Water Separator System - Includes DC Plus Manifold InstalledClean Resources new CRP Series is the next generation of molecular filtration systems. These Oil-Water Separators feature many updates and improvements over the IDC Series separators. The base container will remain the same, but the inlet hub will be replaced with a manifold introducing several new features.
CRP-PAKs provide a convenient and cost-effective method to keep your compressor room EPA-compliant. The innovative CRP-PAK is maintenance-free and mold resistant.
The CRP-PAKs are the most advanced line of Oil-Water Separators. These feature several upgrades to the previous generation of the IDC series. The base unit is still the same as the IDC, but the CRP-PAKs include an external manifold that is compression fit to the container and now accepts 12 inlet lines, six more than previous systemsósix Ω" and six ?".
Built into the manifold is a pre-plumbed timer drain that generates a burst of air every twelve hours to improve the free flow of condensate through the alumina silicate substrate media bed.
CPR-PAKs also feature a discharge hub redesigned to include an antimicrobial puck to sanitize the discharge fluid. This addition inhibits mold and algae growth, keeping the discharge hose clean and free from flow restrictions.
Dimensions:
Width 22"
Depth 20"
Height 57"
Weight 310 lbs
Specifications
-
Inlet Size
1/4 inch
-
Max CFM
1200-3000 CFM
-
Product Model
CRP-1500
