Product Details
BEKOMAT® zero loss condensate drains efficiently eliminate moisture without releasing valuable compressed air. And, with over 1.5 million BEKOMAT® condensate drains installed worldwide and a guaranteed 1 million cycles of performance, you know that you can trust BEKO drains for industry-leading reliability and quality.

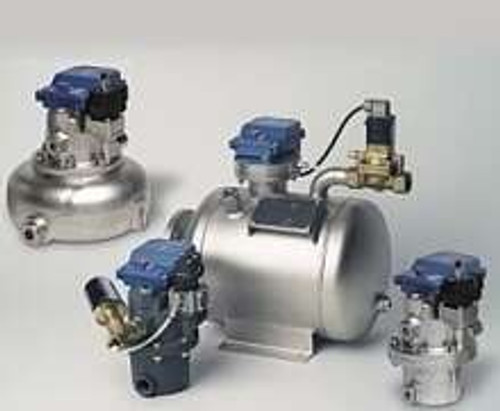

The BEKOMAT® 3 E 25 zero loss drain valve features:
- Integrated fault and alarm signals with remote detection
- Smart design that provides efficient, reliable liquid condensate removal with minimal maintenance
- Large cross sections that prevent costly emulsification
- True zero air loss for maximum energy savings
- Fully automatic, sensor controlled operation
Technical Details
- Temperature min/max: +33/140 F
- Maximum flow rate: 4500 SCFM
- Pressure min/max: 12/360 PSIG
- Stainless steel housing suitable for oil and oil-free condensate operations, high pressure, highly corrosive and special gas applications
Specifications
-
Drain Type
Zero Loss
-
Max CFM
2000+ CFM
-
Size
3/4 inch
-
Product Model
KA03-1DO-A6
