Product Details

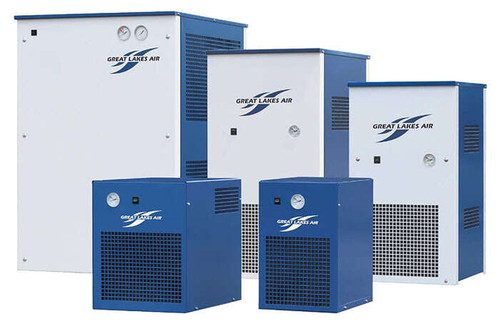

The GRN-20A-116 Great Lakes Air non-cycling refrigerated air dryer features:
- An industry-leading 5-Year Warranty that includes the entire dryer and excludes only drain maintenance.
- Ultra-low pressure drop design that minimizes operating costs.
- Smart solenoid drain design that virtually eliminates the possibility of clogging a condensate drain valve.
- Environmentally-friendly, EPA-approved refrigerants.
Technical Details
- SCFM Capacity @ 100 PSIG and 35F PDP: 20
- SCFM Capacity @ 100 PSIG and 50F PDP: 23
- 360 watts
- Voltage: 120-1-60
- Maximum inlet pressure: 230 PSIG
- Dimensions: 23H x 18W x 23D
Specifications
-
Air Dryer Type
Non-Cycling Refrigerated
-
Hertz
60 HZ
-
Max Inlet Temp. (F)
120
-
Max PSI
230 PSI
-
Phase
1 Phase
-
Product Model
GRN-20A-116
-
Voltage
115
-
CFM
20
