Product Details

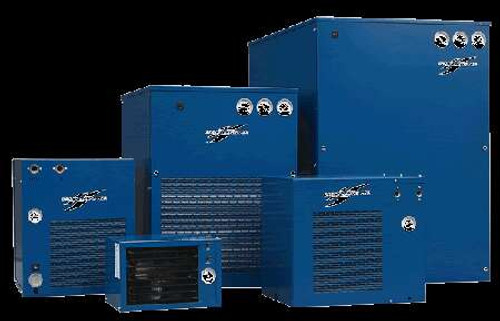

The GRF-150A Great Lakes Air non-cycling refrigerated air dryer features:
- An industry-leading 5-Year Warranty that includes the entire dryer and excludes only drain maintenance.
- Ultra-low pressure drop design that minimizes operating costs.
- Smart solenoid drain design that virtually eliminates the possibility of clogging a condensate drain valve.
- Environmentally-friendly, EPA-approved refrigerants.
Technical Details
- SCFM Capacity @ 100 PSIG and 35F PDP: 150
- SCFM Capacity @ 100 PSIG and 50F PDP: 180
- 1180 watts
- Multiple voltages available
- Maximum inlet pressure: 230 PSIG
- Dimensions: 34H x 26W x 33D
- Weight: 302 pounds
- Suggested prefilter: GC-255-SA
Specifications
-
Air Dryer Type
Non-Cycling Refrigerated
-
Hertz
60 HZ
-
Max Inlet Temp. (F)
120
-
Max PSI
220 PSI
-
Phase
1 Phase
-
Product Model
GRF-150A
-
Voltage
230
-
CFM
150
