Product Details

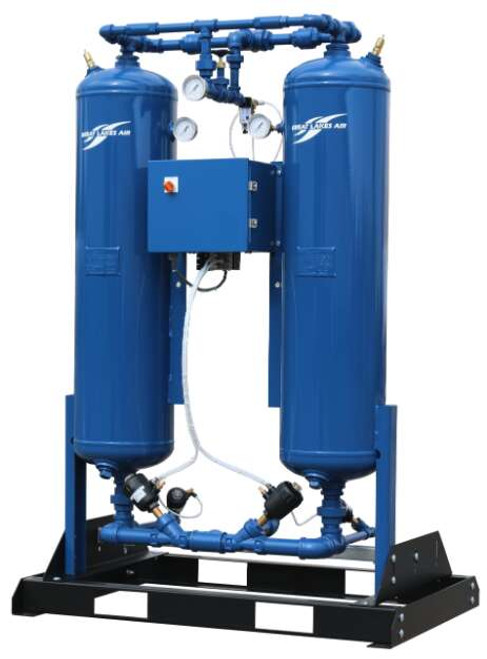

The GPS-1800-116 heatless regenerative air dryer from Great Lakes Air meets the industry's highest quality and parts standards. Design features include:- Desiccant support screens that are fabricated from heavy gauge perforated stainless steel, preventing particle buildup and high pressure drops.
- A gap-free ceramic directional control valve that creates a nearly indestructible, perfect seal where dirt and oil do not accumulate.
- An all-stainless steel, high-flow design process check valve with extraordinary service life.
- A Digital Sequence Controller that gives you total, flexible control for use, maintenance and troubleshooting.
Plus, Great Lakes Air regenerative air dryers include:
- NEMA 12 electrical
- Illuminated On/Off power switch
- Tower pressure gauges
- OSHA approved mufflers
- ASME relief valves
- Control air filter
- Desiccant fill & drain ports
- Adjustable purge flow w/ indicator
Technical Details
- Capacity: 1800 SCFM at 100F
- Desiccant weight: 1800 pounds
- Purge rate: 270 SCFM
- Dimensions: 100H x 92W x 43D
Specifications
-
Air Dryer Type
Desiccant
-
Hertz
60 HZ
-
Max Inlet Temp. (F)
120
-
Max PSI
230 PSI
-
Phase
1 Phase
-
Product Model
GPS-1800-116
-
Voltage
115
-
CFM
1800
