Product Details

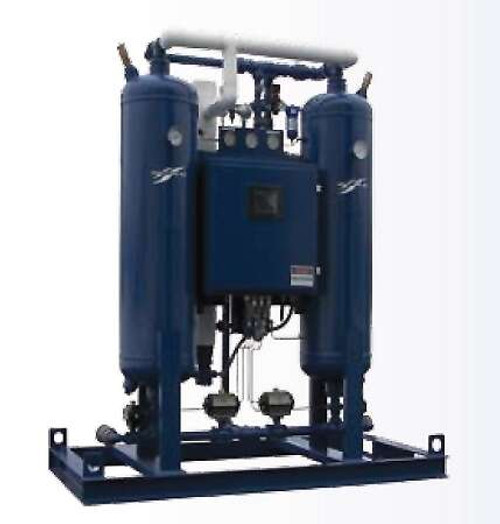

The GEH-100 externally heated regenerative air dryer from Great Lakes Air meets the industry's highest quality and parts standards. Design features include:- Desiccant support screens that are fabricated from heavy gauge perforated stainless steel, preventing particle buildup and high pressure drops.
- A gap-free ceramic directional control valve that creates a nearly indestructible, perfect seal where dirt and oil do not accumulate.
- An all-stainless steel, high-flow design process check valve with extraordinary service life.
- A Digital Sequence Controller that gives you total, flexible control for use, maintenance and troubleshooting.
Plus, Great Lakes Air regenerative air dryers include:
- NEMA 12 electrical
- Illuminated On/Off power switch
- Tower pressure gauges
- OSHA approved
- ASME relief valves
- 5-Year heater warranty
- Insulated heater & purge piping
- 16 watt In2 incoloy sheath heater
- Control air filter
- Desiccant fill & drain ports
- Adjustable purge flow w/ indicator
Technical Details
- Capacity: 100 SCFM at 100F inlet
- Desiccant weight: 140 pounds
- Purge rate: 7.0 SCFM
- Heater Kw: 1.5
- Dimensions: 69H x 49W x 23D
Specifications
-
Air Dryer Type
Desiccant
-
Hertz
60 HZ
-
Max Inlet Temp. (F)
120
-
Max PSI
230 PSI
-
Phase
3 Phase
-
Product Model
GEH-100
-
Voltage
230
-
CFM
100
