ERF-1200A Refrigerated Air Dryer - Great Lakes Air

Product Details

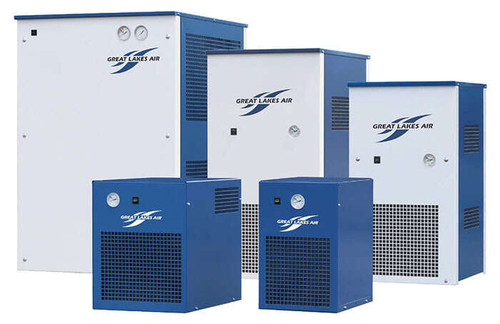

The ERF-1200A Great Lakes Air non-cycling refrigerated air dryer features:

• An industry-leading 5-Year Warranty that includes the entire dryer and excludes only drain maintenance.
• Ultra-low pressure drop design that minimizes operating costs.
• Smart solenoid drain design that virtually eliminates the possibility of clogging a condensate drain valve.
• Environmentally-friendly, EPA-approved refrigerants.

Technical Details

• SCFM Capacity @ 100 PSIG and 35F PDP: 1200
• SCFM Capacity @ 100 PSIG and 50F PDP: 1400
• 6720 watts
• Multiple voltages available
• Maximum inlet pressure: 230 PSIG
• Dimensions: 60H x 35W x 56D

Specifications

• Air Dryer Type

  Non-Cycling Refrigerated

• Hertz

  60 HZ

• Max Inlet Temp. (F)

  120

• Max PSI

  150 PSI

• Phase

  3 Phase

• Product Model

  ERF-1200A

• Voltage

  575

• CFM

  1200
