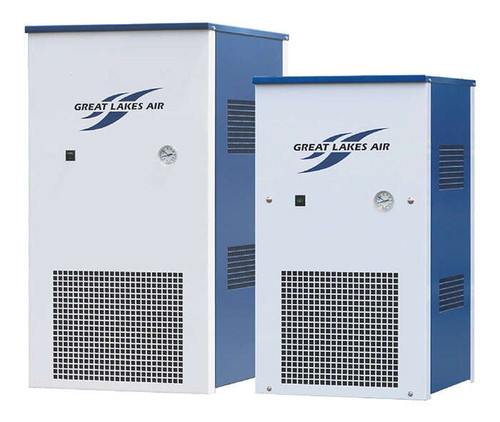

EDR-A2-116 High Temperature Refrigerated Air Dryer

Product Details

The EDR-A2-116 Great Lakes Air high temperature refrigerated air dryer features:

• 5-2-1 Product Warranty includes a 5-year warranty that covers SS heat exchangers, a 2-year warranty that covers all independent components (only excluding maintenance items) and a 1-year warranty covering labor required to repair or replace warranty items.
• Pressure dewpoints of 39F, providing air that contains 33% less moisture than standard 50F dryers.
• Smart solenoid drain design that virtually eliminates the possibility of clogging a condensate drain valve.
• Environmentally-friendly, EPA-approved refrigerants.

Technical Details

• SCFM Capacity @ 120 PSIG and 50F PDP: 36
• SCFM Capacity @ 100 PSIG and 50F PDP: 30
• SCFM Capacity @ 120 PSIG and 39F PDP: 30
• SCFM Capacity @ 100 PSIG and 39F PDP: 25
• 451 watts
• Voltage: 120-1-60
• Maximum inlet pressure: 230 PSIG
• Dimensions: 23H x 18W x 23D
• Weight: 120 pounds

Specifications

• Air Dryer Type

  High Temp

• Hertz

  60 HZ

• Max Inlet Temp. (F)

  180

• Max PSI

  230 PSI

• Phase

  1 Phase

• Product Model

  EDR-A2-116

• Voltage

  115

• CFM

  30
