Product Details

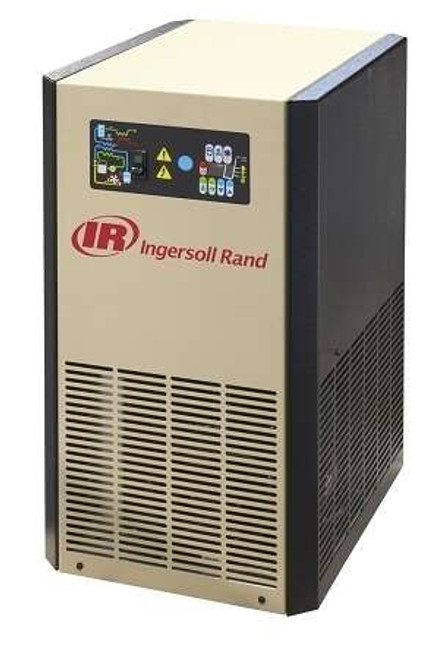

No Longer Available From Manufacturer - Please See Replacement DA212ECHigher Efficiency, Lower Cost The Ingersoll Rand D-EC cycling refrigerated dryer design helps you achieve optimal performance at a lower cost compared to a non-cycling design. To reduce energy consumption, the dryer refrigeration system automatically deactivates during periods of low load and features a patented heat exchanger and thermal mass circuit.
Thermal mass dryers use a simple but efficient refrigeration system that cools a liquid solution, then cools the compressed air, removing harmful moisture from your air stream. This type of refrigeration method allows the refrigeration compressor to shut down during periods of low flow, with a considerable reduction in power costs over other designs. This smart design also has the lowest operating kW, the lowest pressure drop, and cycles off in periods of low demand.
- Variable dewpoint settings
- Heavy duty construction meant to last
- Lowest running costs of any refrigeration dryer
- Easily serviced
- Easy-to-read information panels
Technical Details
- 125 SCFM (airflow)
- 200 Max PSI
- 115-1-60 voltage
- Weight: 160 pounds
- Dimensions: 17L x 23W x 31H
Specifications
-
Air Dryer Type
Cycling Refrigerated
-
Hertz
60 HZ
-
Max Inlet Temp. (F)
120
-
Max PSI
200 PSI
-
Phase
1 Phase
-
Product Model
D212EC
-
Voltage
115
-
CFM
125
