Product Details

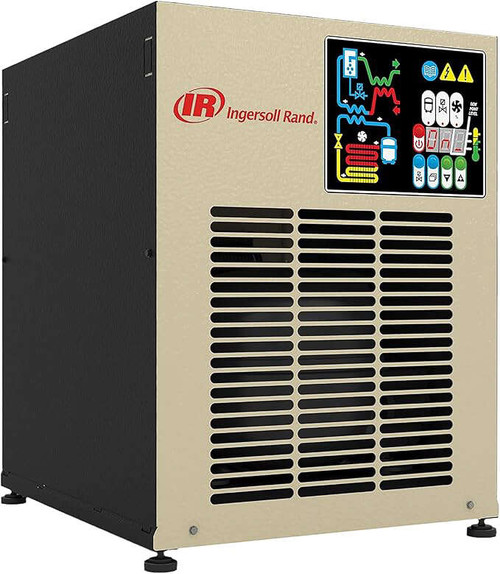

The Ingersoll Rand D Refrigerated Dryer Range unit is a compact, complete and affordable industrial solution. This high capacity unit is designed for large-scale industrial applications and features:
- A full feature, multi-function control panel with multiple alarm displays and energy saving mode for automatic shut off
- Fully adjustable, programmable electronic drain valve to minimize air loss
- Multi-stage filtering that helps remove residual contaminants
- Design features that ensure constant dew point at all load levels
- Satisfies ISO 7183 industry standards
Technical Details
- 11 SCFM (airflow)
- 203 Max PSI
- 115-1-60 voltage
- Weight: 40 pounds
- Dimensions: 12L x 15W x 16H
Specifications
-
Air Dryer Type
Non-Cycling Refrigerated
-
Hertz
60 HZ
-
Max Inlet Temp. (F)
140
-
Max PSI
200 PSI
-
Phase
1 Phase
-
Product Model
D18IN
-
Voltage
115
-
CFM
11
