Product Details

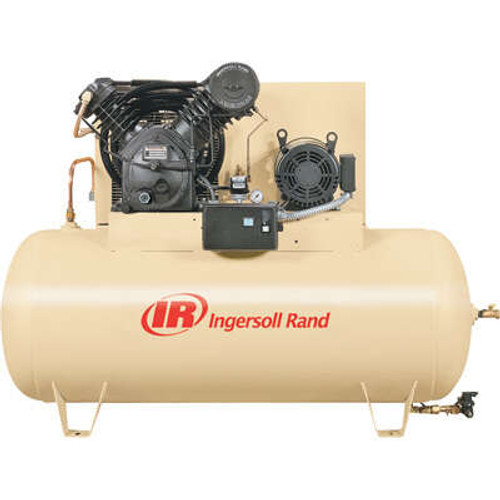

For applications that are the most demanding or require greater control over compressed air supply. Step up to our top-of-the-line Premium Package. These air compressors come standard with factory-fitted options shown above for unmatched reliability in 100% continuous-duty applications.Ingersoll-Rand's Type-30 air compressors provide unsurpassed performance in the most demanding applications. Recognized industry leaders for quality, power and reliability, Ingersoll Rand air compressors have been trusted for over 75 years and are the world's best-selling reciprocating compressor. Each premium unit includes a two-stage, 100% cast iron pump, ODP electric motor, mounted and wired magnetic motor starter, automatic start & stop control with a NEMA 1 pressure switch, and an ASME coded air receiver tank. The Premium Package adds an electric drain, air-cooled aftercooler, low oil level switch and dual control with centrifugal unloader.
- Electric driven 2-stage model
- 120 gallon horizontal tank
- Designed to run at high volumes and high pressure, without interruption
- Solid, 100% cast iron construction and components
- Unsurpassed quality and reliability - millions in use!
Technical Details
- 10 horsepower
- 200 Volt 3-Phase
- 35 ACFM @ 175 PSIG
- Receiver: 120 horizontal
- Weight: 835 pounds
- Dimensions: 72L x 31W x 56H
Specifications
-
Tank
Yes
-
Compressor Type
Two Stage
-
Hertz
60 HZ
-
Horsepower
10 HP
-
Integrated Dryer
No
-
Max PSI
175 PSI
-
Phase
3 Phase
-
Power Source
Electric
-
Product Model
2545E10-P
-
Tank Orientation
Horizontal
-
Tank Size
120 Gallons
-
Variable Speed
No
-
Voltage
200
-
NPT Outlet (in)
0.5000
