Product Details

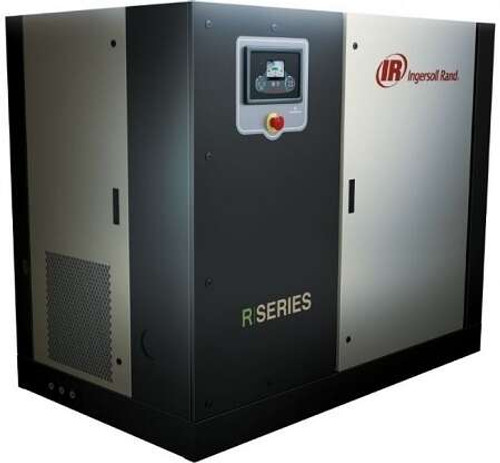

The Next Generation R-Series was designed with the intent of maximizing your company's profits. Bringing you class leading air flow as well as world class efficiency, the Next Gen RSeries will bring you the most value for your dollar. Designed to maximize your up-time and minimize your out of pocket expenses by bringing you a service friendly package layout as well as state-of-the-art reliability features. The RS30-37i comes standard with an Intelligent Microprocessor Controller allowing you to talk to your system like never before and know exactly what is going on in your system.
Features
- Smart, Energy Efficient Controls Industry-leading performance delivers more air for less horsepower, saving thousands of dollars per year on energy.
- Installation Close to Point-of-Use Whisper quiet operation allows for installation closer to point-of-use, reducing costs and ensuring a better & safer work environment.
- Closely Maintained Pressure Reducing discharge pressure and avoiding excessive pressure bands increases downstream tool and equipment life.

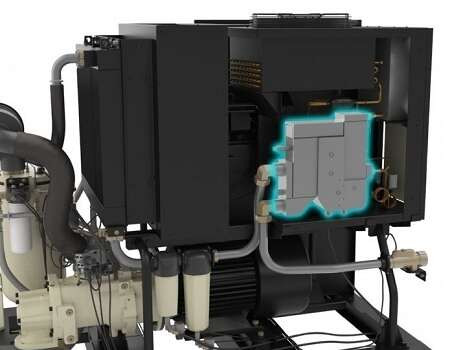

- 70% Fewer Connections Smart integration eliminates leaks and pressure drops maximizing reliability.
- Compact Footprint Design Small footprint frees up valuable floor space and reduces install costs.
- Optional Total Air System Package Complete integrated air treatment package.
Technical Details
- 50 horsepower
- Dimensions: 72L x 42W x 60H
Standard Models
- 231 ACFM with 115 max PSI
- 220 ACFM with 125 max PSI
- Weight 2414
TAS Models
- 231 ACFM with 103 max PSI
- 220 ACFM with 118 max PSI
- Weight: 2646 pounds
Specifications
-
Tank
No
-
Compressor Type
Rotary Screw
-
Hertz
60 HZ
-
Horsepower
50 HP
-
Integrated Dryer
No
-
Max PSI
125 PSI
-
Phase
3 Phase
-
Power Source
Electric
-
Product Model
RS37i
-
Variable Speed
No
-
Voltage
575
